Home VECTOR OPTICS 30mm 1-Piece Adjustable Extended Picatinny Mount
VECTOR OPTICS

VECTOR OPTICS 30mm 1-Piece Adjustable Extended Picatinny Mount

SKU: XASR-3037

HKD $304.20
Description
  • Adjustable Length Allows for Comfortable Eye Relief, Improving Shooting Accuracy

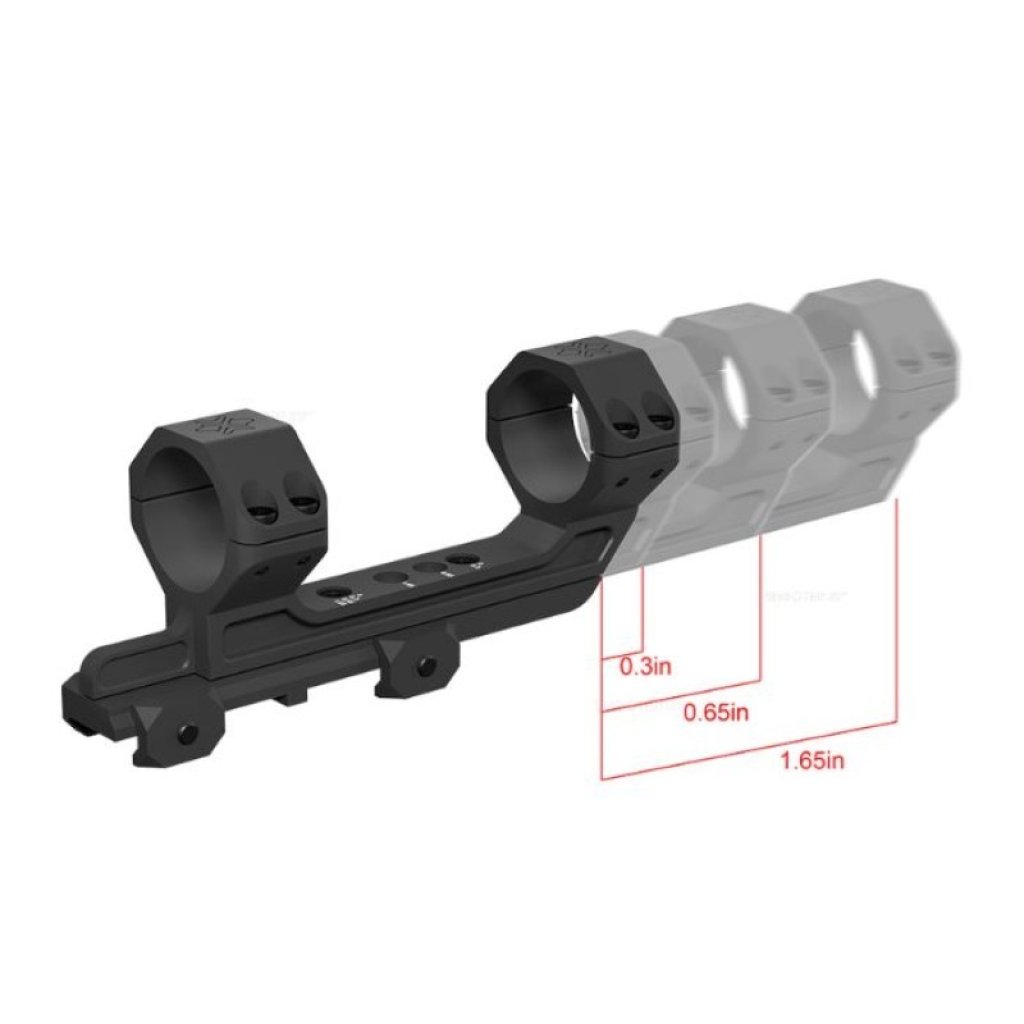

  • Additional 0.3, 0.65, and 1.65 inch for Forward Extension to Customize Eye Relief
  • 38mm/ 1.5in Bottom to Ring Center, Extremely Accurate and Stable w/ Full CNC Machined
  • 21mm Picatinny Mount with Two Crossing Bolts & Anti-Retreat Bar for A Secure Attachment

XASR-3037 30mm 1-Piece Adjustable Extended Picatinny Mount Dimensions

  • Ring Diameter: 30 mm
  • Overall Length: 139 mm / 5.47 in
  • Overall Height: 62.0 mm / 2.44 in
  • Ring Width: 45.5 mm / 1.79 in
  • Central Height: 38.0 mm / 1.5 in, Bottom to Center
  • Gap Length: 73 mm / 2.87 in
  • Material: 6061-T6 Aluminum Alloy
  • Weight: 154 g / 5.43 oz
  • Mount: 1913 Picatinny
  • Finish: Black
  • Screws per ring: 4 (M4 x 9mm)
  • Mount Material: 6061-T6 Aluminum Alloy
  • Items in the Package: Hex Key, T15 Torx Wrench and T20 Torx Wrench, etc.
