Types of Hop the Conversion Kit can be Used for

The kit may be used in unison with all bucking types and also works perfectly for R-Hop & Flat-hop setups utilizing a trolley system that applies hop perfectly downwards for the most consistent pressure distributed onto the BB. As a result, increased accuracy over longer distances.

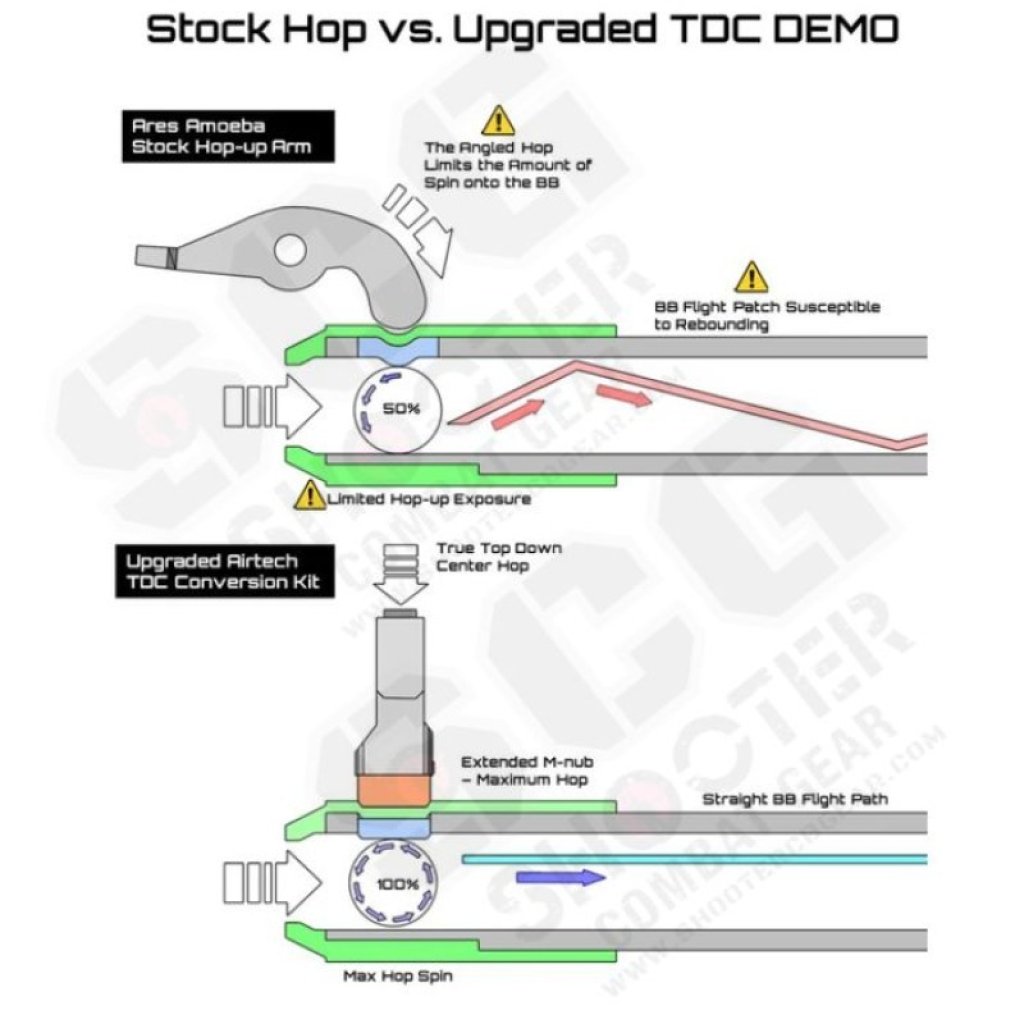

Why TDC (Top-Down-Center)?

The idea of using a Top-down-center is a well sought after functionality in airsoft that maximizes the amount of friction allowed onto a BB round and there are third part chambers that can achieve this.  However, switching to a third party chamber could carry a series of risks such as double BB feeding, misfeeding, and inconsistent air compression. That is the reason why we opted for an upgrade option for the original hop-up chamber that is specifically designed for Ares Amoeba models.

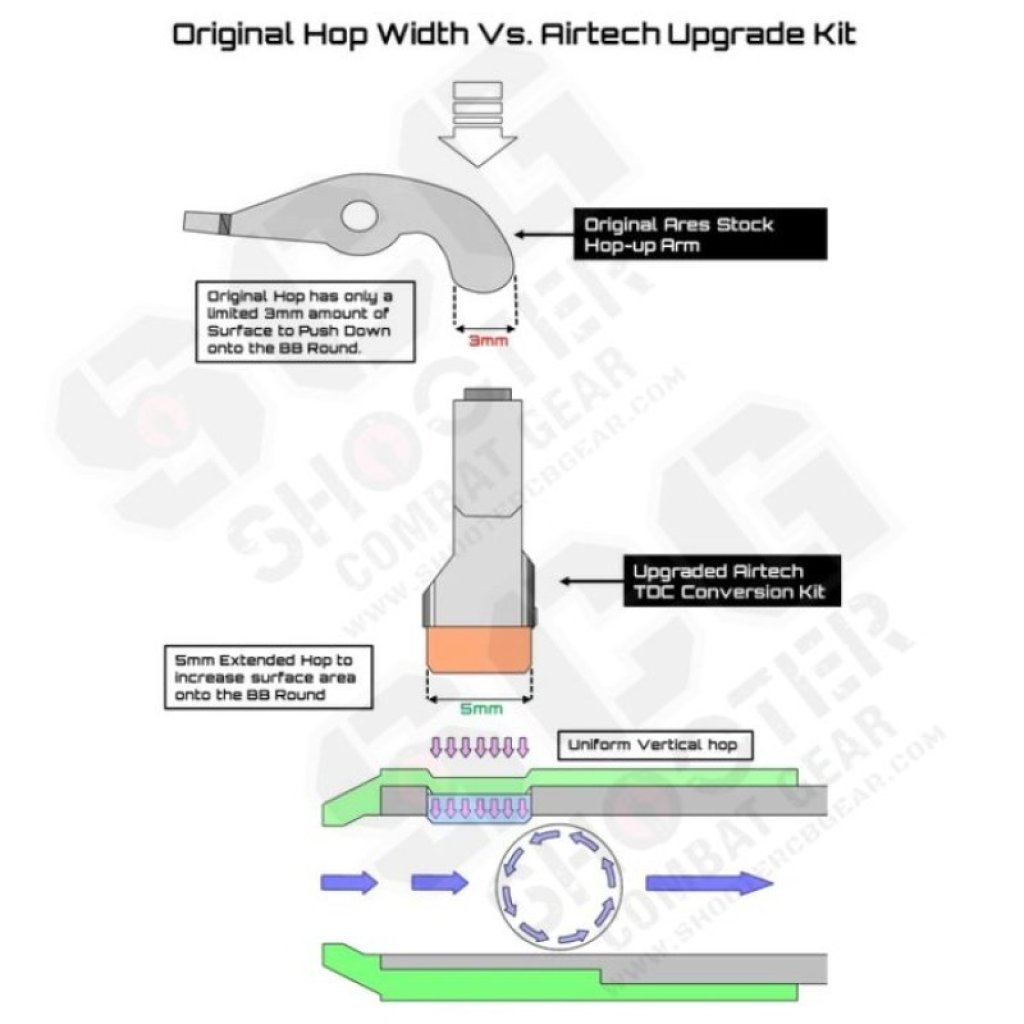

M-Nub

We tested the performance of many types of M-nubs for its firmness, durability, and ability maintain its shape under intense pressure. We settled with a version that ticks all of these boxes.

2x M-nubs are included that covers the length of the hop-up window to maximize the amount of exposure onto the bucking and then BB. This ensures the most stable hop, while the BB accelerates through the hop mound/ Arch.

Outer Barrel Modifications

Please note that this kit will require modification to the outer barrel of your airsoft replica, however, is straightforward and worth your while after!

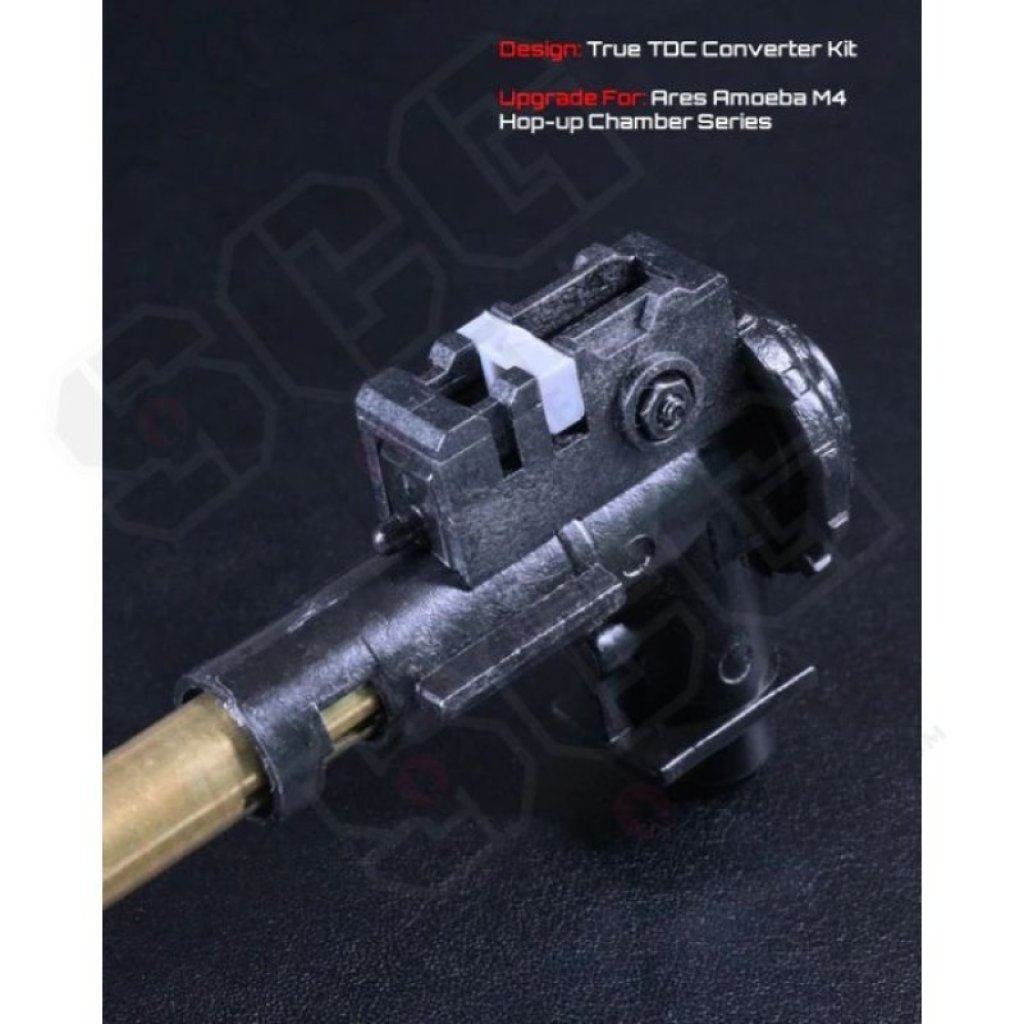

The Integration kit is made for the Ares Amoeba Plastic hop up unit. Slight modification/ Sanding is required

Core Benefits After Install

• Increase shooting distance, accuracy and consistency.
• Micro adjustments for the perfect hop setting.
• Using original chamber will ensure optimum BB feeding, FPS consistency, and prevent double feeding.
• Can be used on all hop styes including a standard bucking, R-HOP, Flat-hop, and Advanced R-Hop buckings i.e. Maple Leaf Macaron.

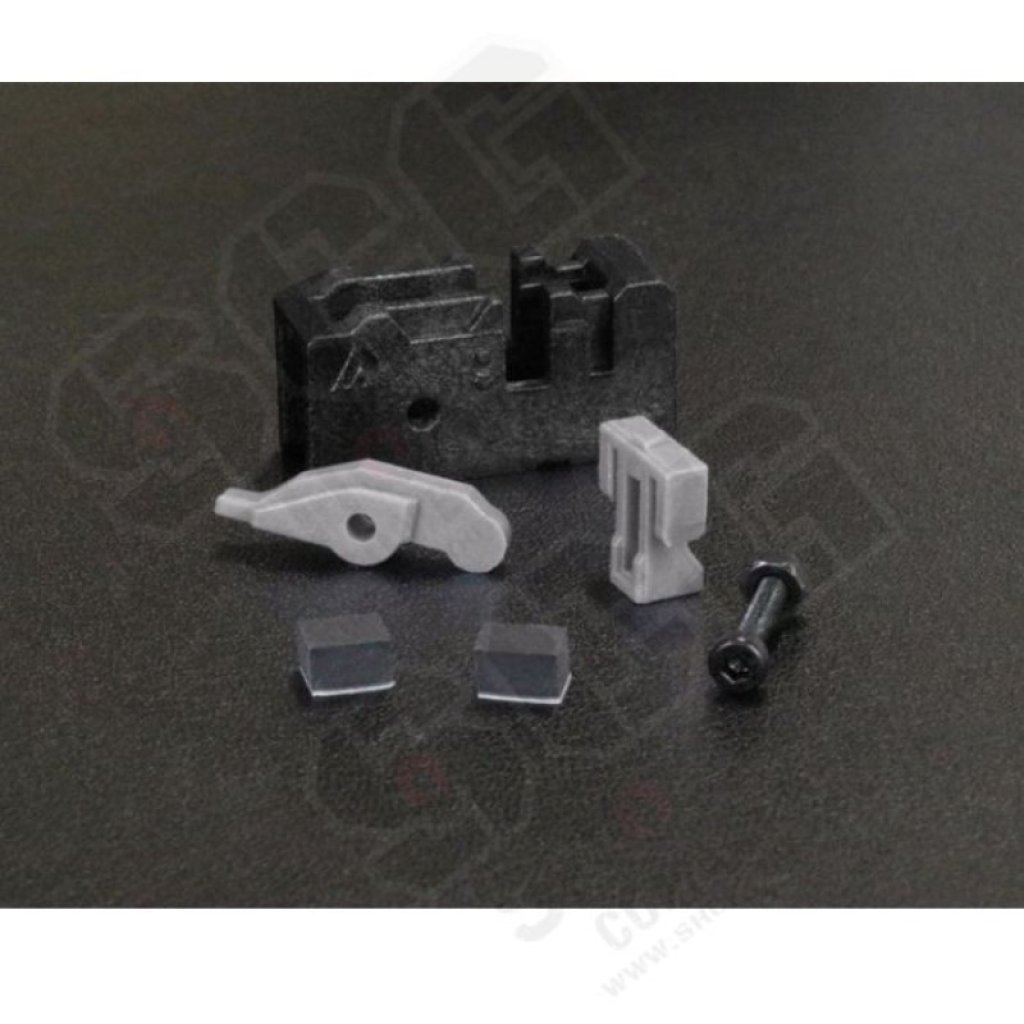

Package Contents

1 x TDC Bracket
1 x TDC Trolley
2 x M-Nub
1 x Hop Up Arm
1 x M2 Bolt
1 x M2 Nut
